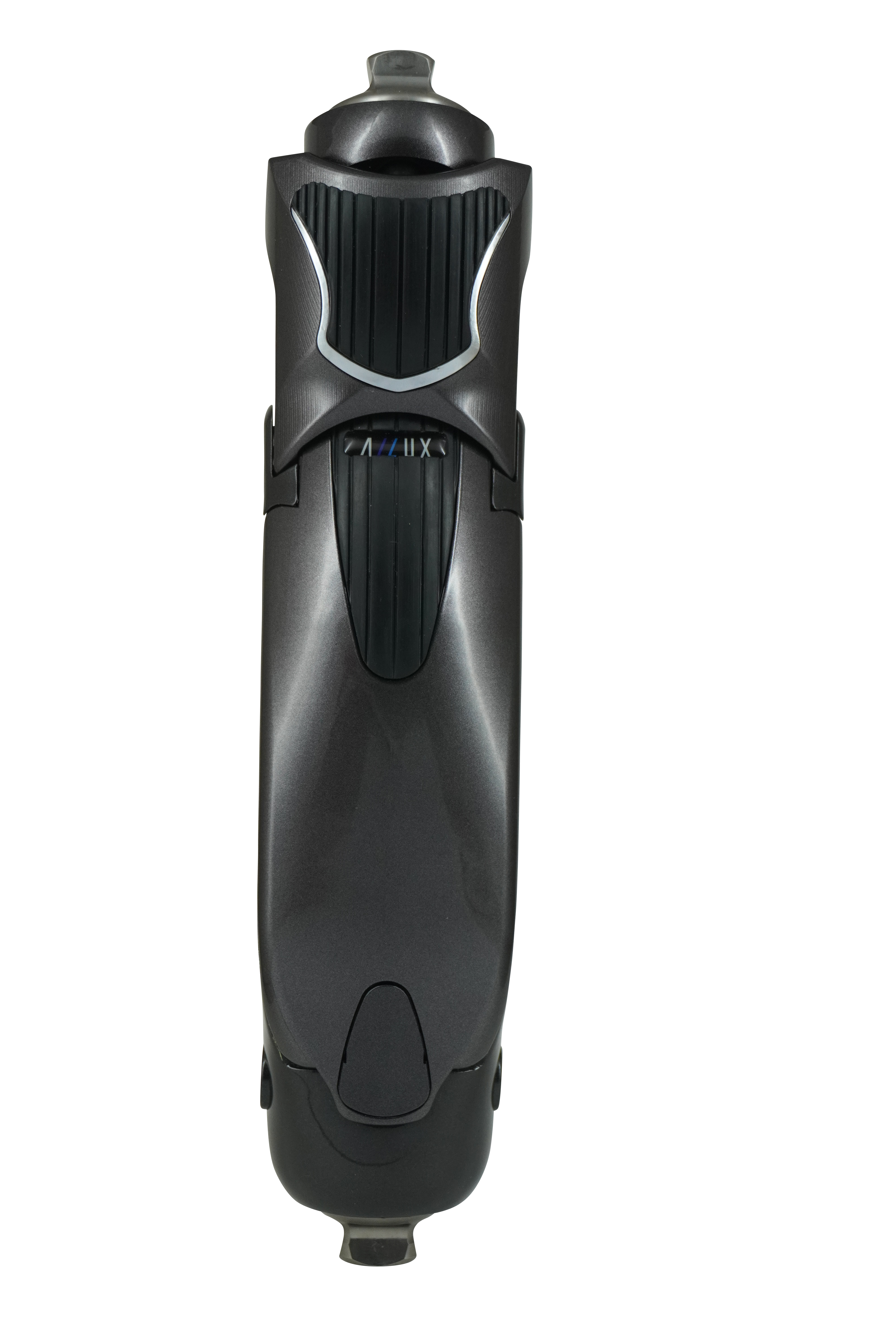

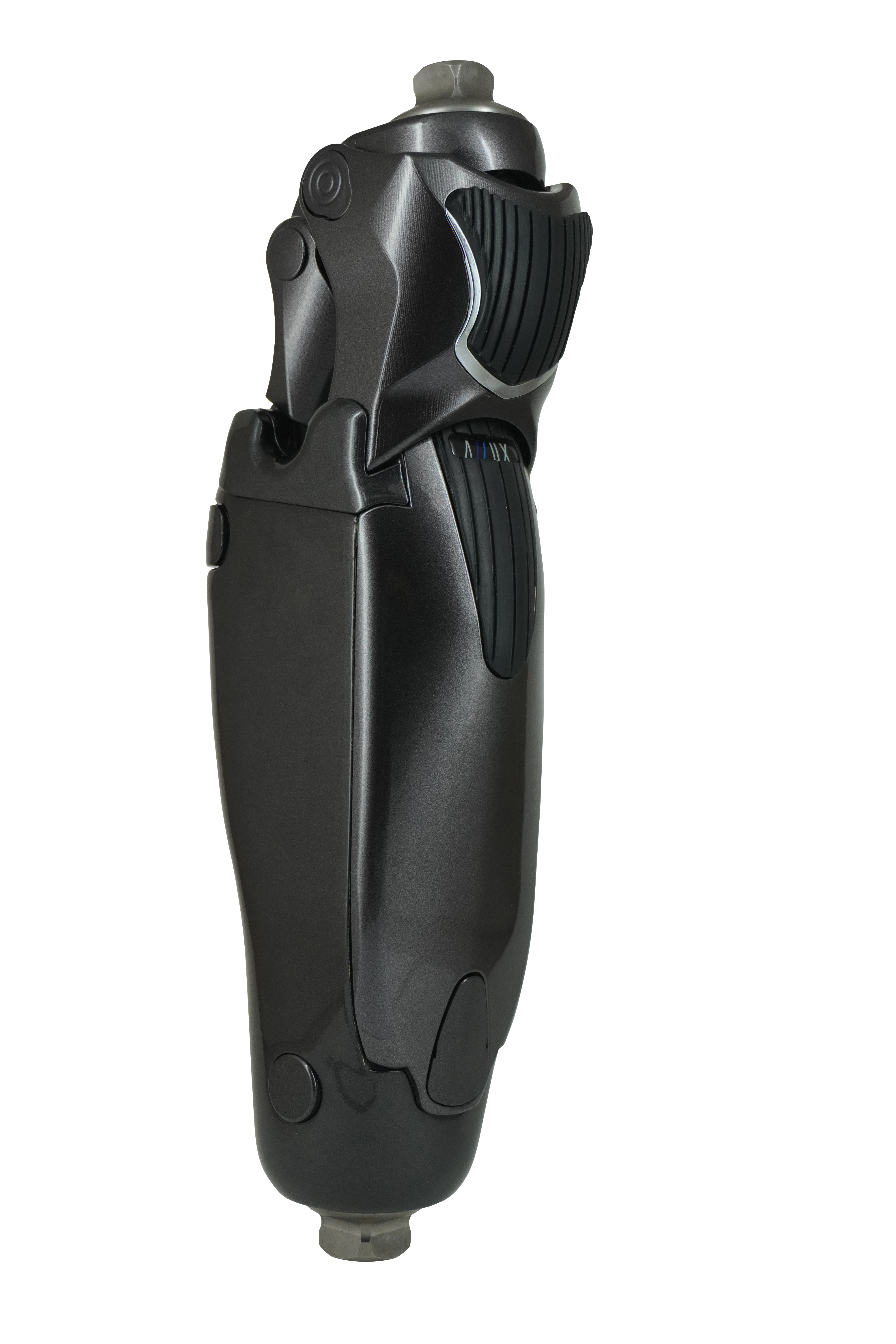

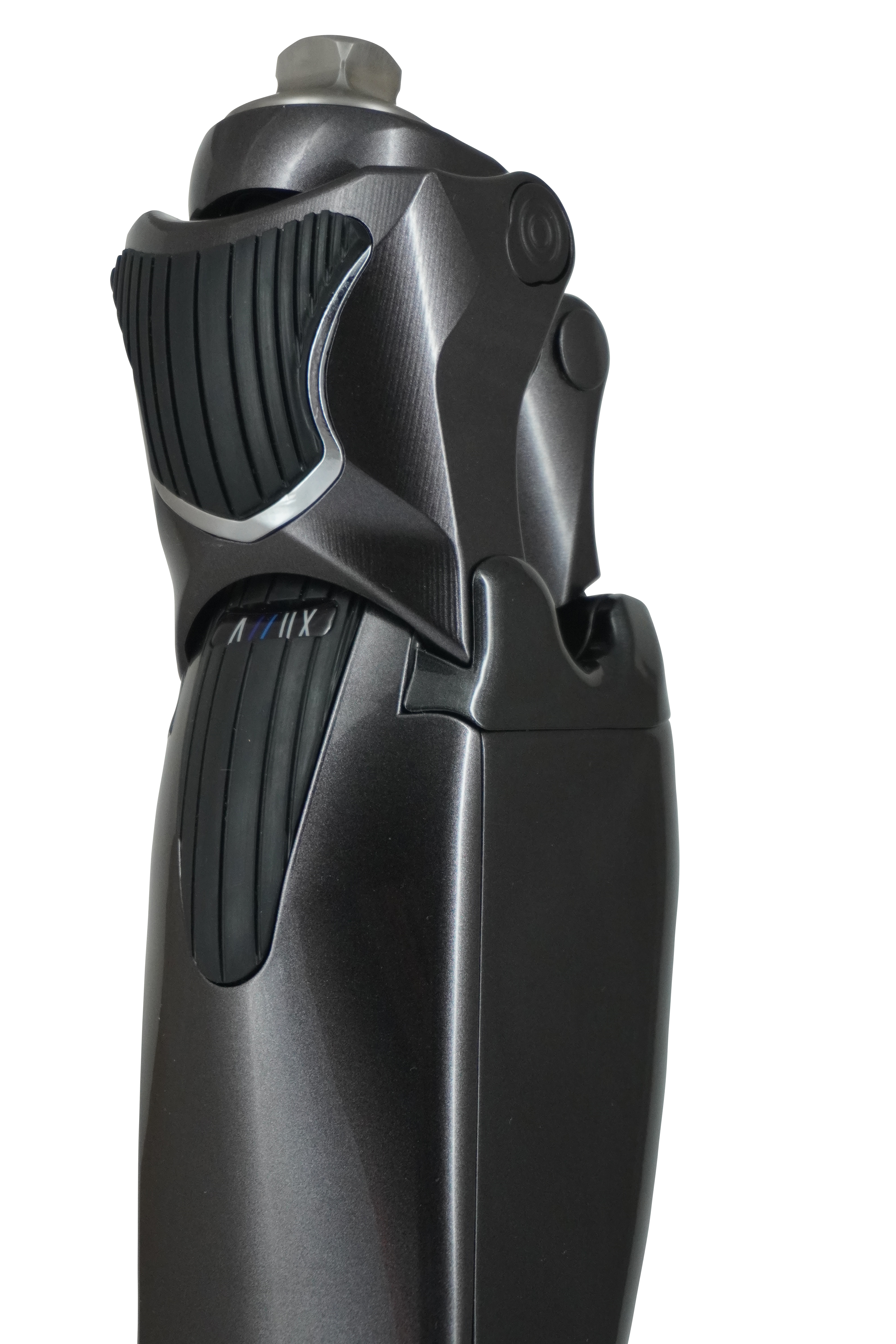

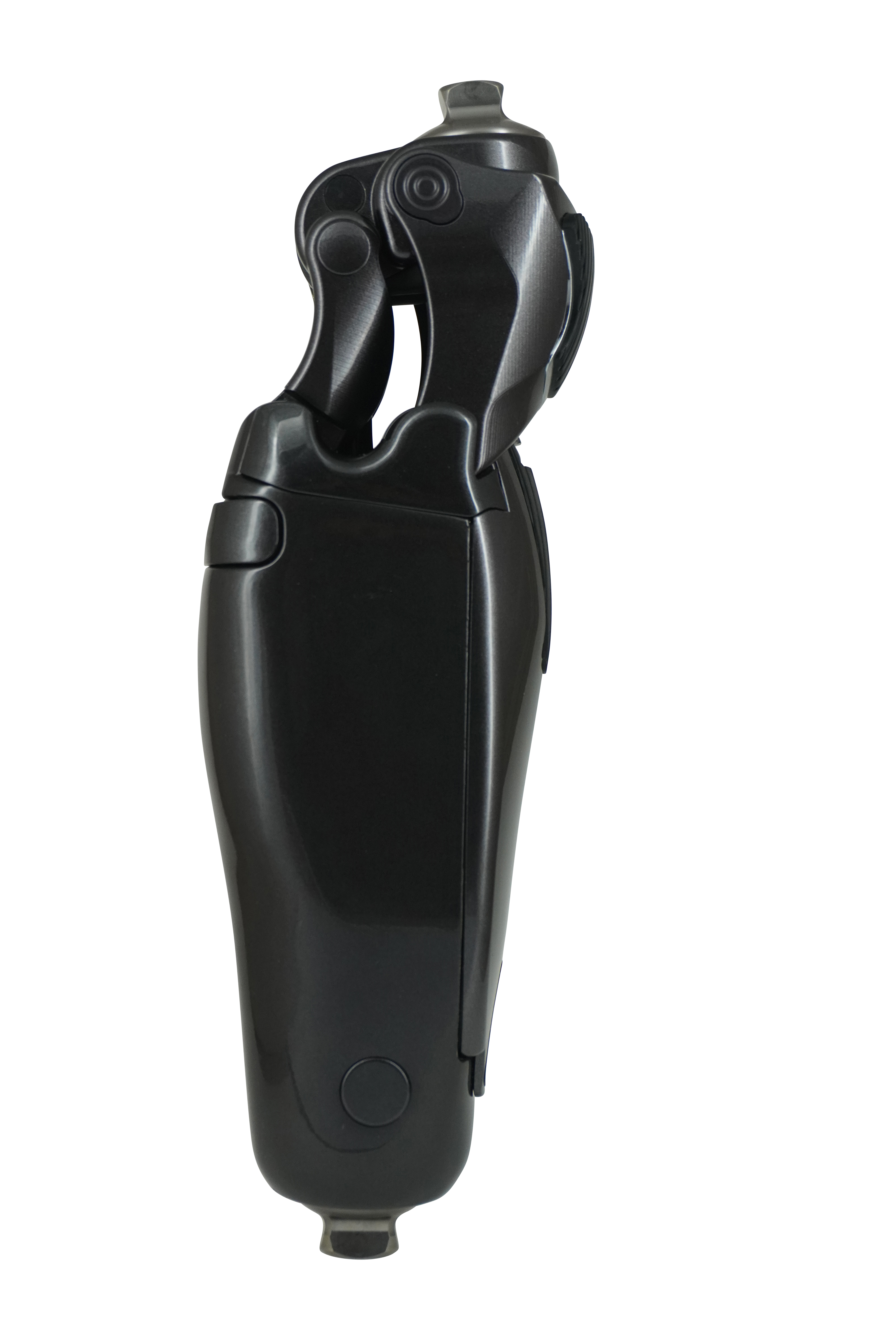

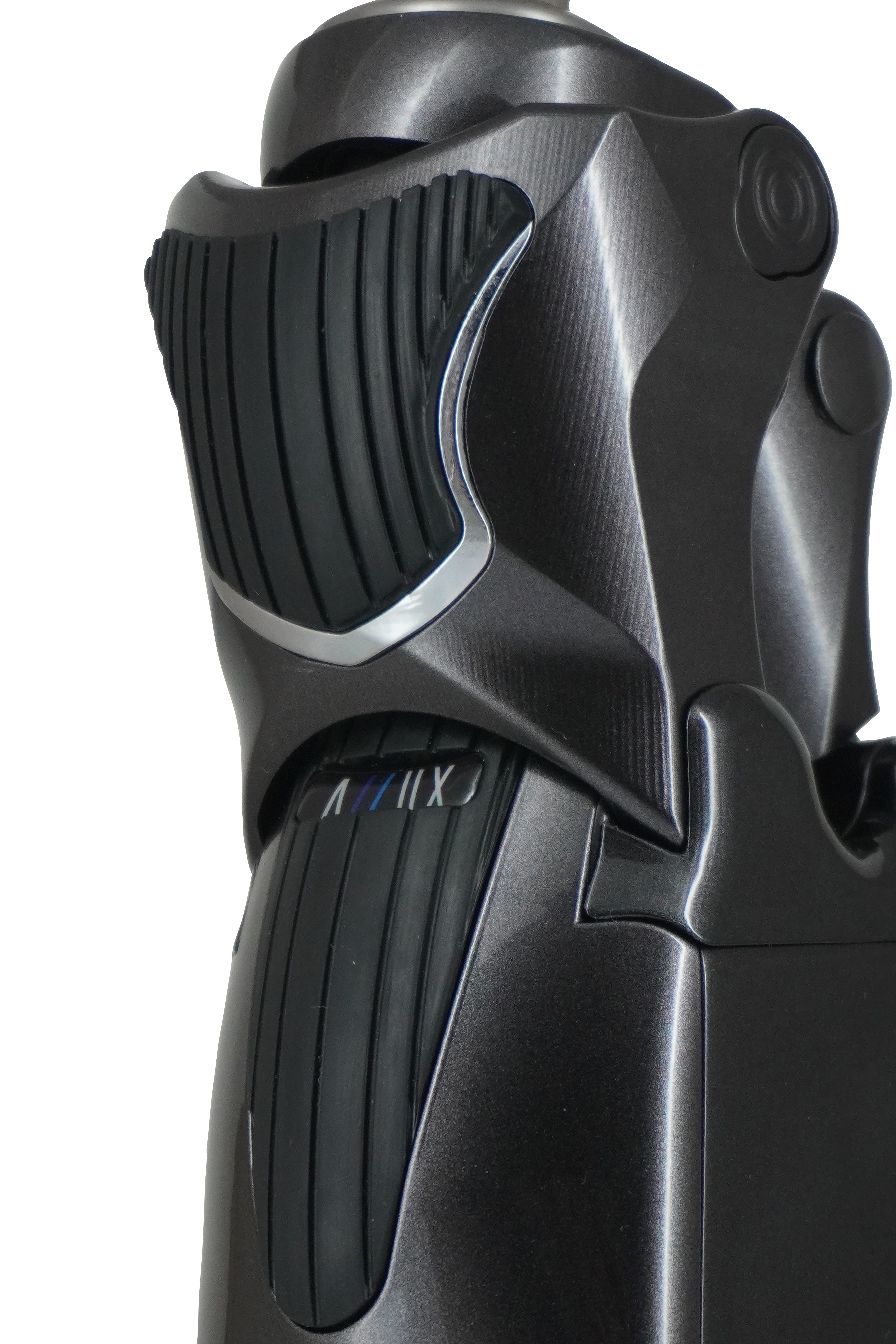

ALLUX2

Activity Level

K2, K3, K4

Amputation Level

Transfemoral (AK)

Description

The ALLUX2 combines microprocessor control with a unique polycentric design to deliver enhanced dynamic stability and natural swing. The design enables adaptive hydraulic control in both swing and stance phase, resulting in more natural gait, ease of transition between gait phases and a reduced risk of falls. The knee provides an industry leading 180 degrees of flexion and a programmable safety lock, making it ideal for use across versatile patient needs for K2-K4 activity levels.

Product Highlights:

• 4-Bar design in combination with microprocessor control

• Best in class – 180 degrees of knee flexion

• Increased toe clearance reduces stumble risk

• Long battery life (4 days @5000 steps/day)

• Programmable and adjustable via Bluetooth

Resources

Specifications
Part Numbers
Resources
Related Products

Specifications

Max Patient Weight

275lbs (124.74kg)

Product Weight

3.33lbs (1.51kg)

Build Height

295 mm (11.6")

Knee Flexion

180°

Warranty

3 years from date of patient fitting

PDAC Approved L-Codes

L5615 + L5845 + L5848 + L5856

Part Numbers

Included with the Knee: Knee, Charging Port Cap, Power Off Cap, Charger, AC Adapter, Backup Battery, Backup Battery Case, Extension Cable, Backup Battery Charging Cable, Instructions for Use

Part Number	Description
WW-NE-Z41	ALLUX2 4-Bar Hydraulic MPK, Pyramid
WW-NE-Z41SH	ALLUX2 4-Bar Hydraulic MPK, Threaded
WW-NE-BC01	Accessory - Battery Charger
WW-NE-CC01	Accessory - Charging Port Cap
WW-NE-CC02	Accessory - Power-Off Cap
WW-NE-SB01	Accessory - Back Up Battery Pack
WW-NE-SC01	Accessory - Backup Battery Holder
WW-NE-AD01	Accessory - AC Adapter
WW-NE-CL01	Accessory - Backup Battery Charging Cable
WW-NE-CL02	Accessory - Extension Cable
