Boltless Unibody®
design
design
Unibody platform
eliminates need for
hardware and
maximizes energy return
eliminates need for
hardware and
maximizes energy return
Split keel and
sandal toe
sandal toe
Waterproof and
corrosion resistant
corrosion resistant
META® Shock X
Description
Responsive dual-bumper shock absorption and 40° of torsional rotation – promote natural rotational movement, smooth gait, and provide comfort to the limb and joints to support a broad range of activities.
Specifications
PDAC Approved L-Codes
L5987 + L5984
Build Height
138mm (5.43”)
Product Weight
720g (For Std. Size 26 Cat. 5 with foot shell and sock)
Range of Motion
Up to 13mm vertical displacement + 40° of torsional rotation
User Weight Limit
166 Kg (365 Lbs.)
Foot Size
22-30 cm
Heel Height
10 mm (3/8")
Trial Period
60 days from date of patient fitting
U.S. Warranty Information
Foot: 36 months from date of patient fitting
Foot Shell: 6 months from date of patient fitting
Foot Shell: 6 months from date of patient fitting

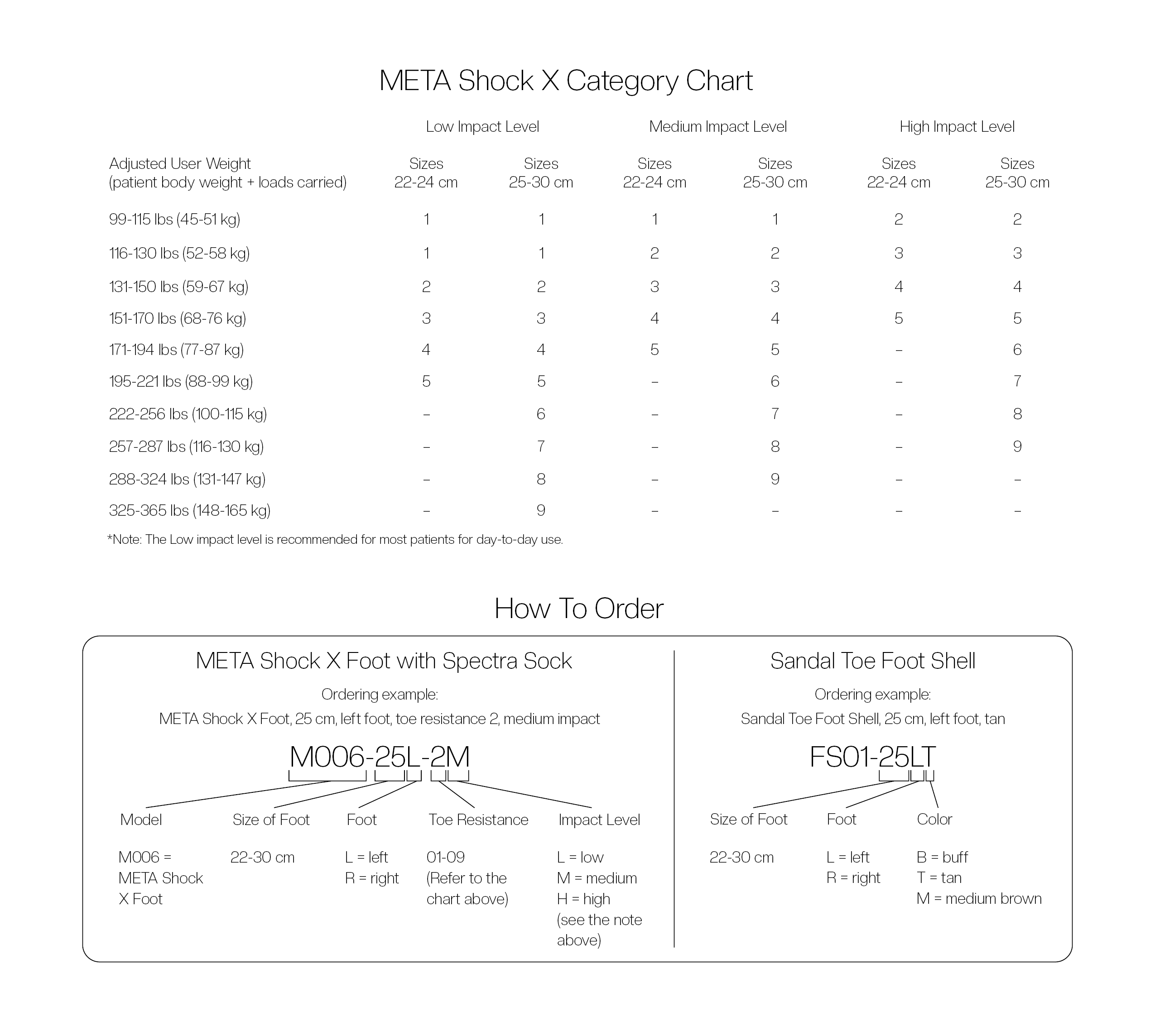

Ordering Guidelines
